Feed mill machine

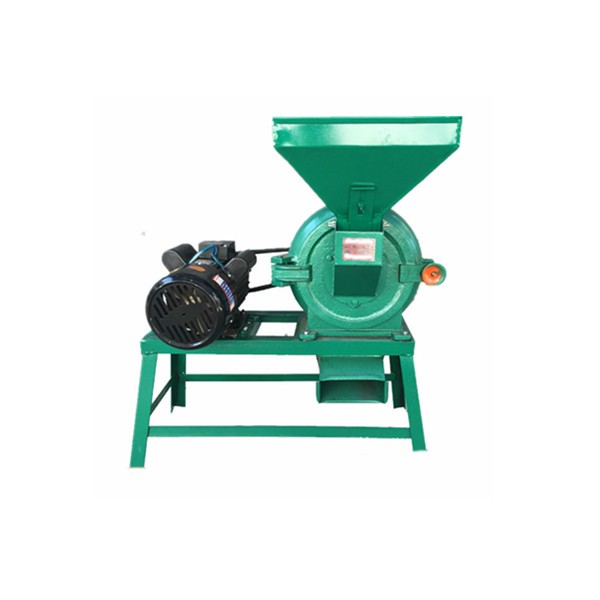

Claw type feed grinder, used for crushing grains, rice husks, corn, wheat, and soybeans as feed for chicken, duck, and goose farming. The Claw type feed grinder, also known as the toothed disc crusher, is a carbon steel material crusher commonly used for crushing grains, rice husks, grains, sorghum, soybean cakes, etc. as feed. Or crush chemical raw materials. The claw type feed grinder can finely grind grains, cereals, rice husks, etc., ranging from 10 to 120 mesh, which can be finer than flour. The Claw type feed grinder has vertical feeding and self-priming feeding. Self priming feeding does not require manual feeding, and can be directly inserted into the grain through a self suction tube to be crushed inside the crusher. Vertical feeding requires manual feeding or feeding with a screw conveyor.

The Claw type feed grinder crushes wheat, corn, soybeans, and husks, and the fineness of the crushing is determined based on the feeding animals. Some need to be crushed to 0.8 millimeters, some need to be crushed to 2 millimeters, some need to be crushed to 4 millimeters, some need to be crushed to 6 millimeters, and some need to be crushed to 8 millimeters. The grinding fineness of the claw type crusher is achieved by replacing different screens to achieve different grinding fineness. Feeding large animals such as cows, sheep, and pigs requires a coarser pulverization, while feeding poultry such as chickens, ducks, and geese requires a finer pulverization. This can also help with digestion and absorption when feeding animals.

When the Claw type feed grinder starts working, the toothed disc inside the main body will start to rotate at high speed under the drive of the motor. At this time, the material enters the crushing chamber at a constant speed through the feeding hopper. The high-speed rotating toothed disc inside will carry the material for rotational crushing work, mainly relying on the relative upper and lower teeth on the toothed disc to grind and strike. The degree of crushing is determined, and the finished material will be discharged from the discharge hopper through the bottom of the gong to complete the crushing work.

The internal structure of the Claw type feed grinder is toothed claws, which provide higher crushing accuracy and lower friction resistance during operation. It is equipped with an anti leakage switch, making one click start safer. Pure copper core motor, good heat dissipation, long service life. The Claw type feed grinder can crush wheat, millet, rice, husk, corn, sorghum, soybeans, peanut shells, bean cakes, soybean meal, corncob cereals, straws, vines, dry and fresh potatoes, leaf shells and other grains and feeds, and can also crush chemical raw materials such as gypsum, lead powder, slippery powder, rare earth, chemicals, clay, coal and other low hardness minerals.
